Hot sale 200w high lumen led outdoor flood light LM79 LM80 high bay reflector
Basic Info
Product Description

Hot sale 200w high lumen Led Outdoor Flood Light LM79 LM80 High Bay reflector




Product Benefits

LED LUMINOUS SOURCE

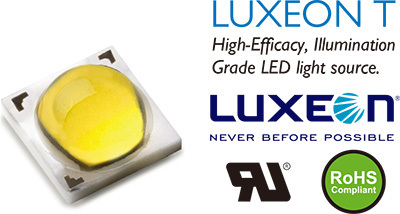

The ZGSM HB-Series LED Floodlights are utilizing LUXEON TX luminous source, providing excellent lumen output - up to 100 LPW, long-lasting stability and splendid sight.

Each LUXEON TX owns eletrostatic protection component, maximally avoid the damage of electrostatic.

More information about the LUXEON T and solid-state lighting technologies can be found at


LED DRIVER

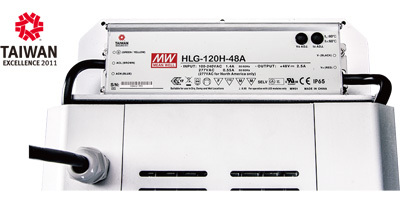

Full Range of ZGSM HB-Series LED Floodlightsare utilizing MEANWELL HLG series high-end driver, optimal operation stability, lifespan and performance.

More information about the MEANWELL HLG and LED driver technologies, please visit


ZGSM 3RD GENERATION LED MODULE

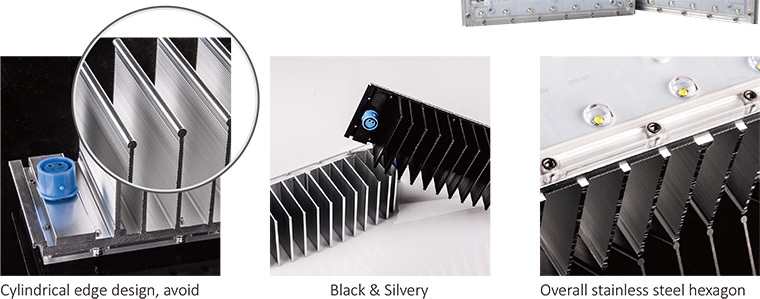

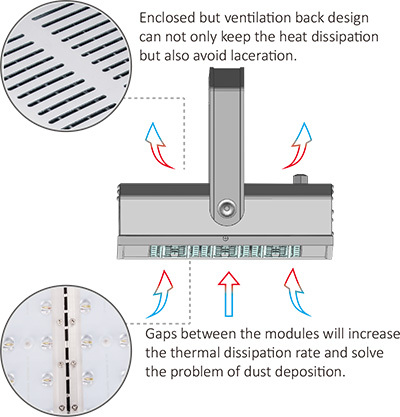

Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.


XTREME LUMINAIRE DESIGN

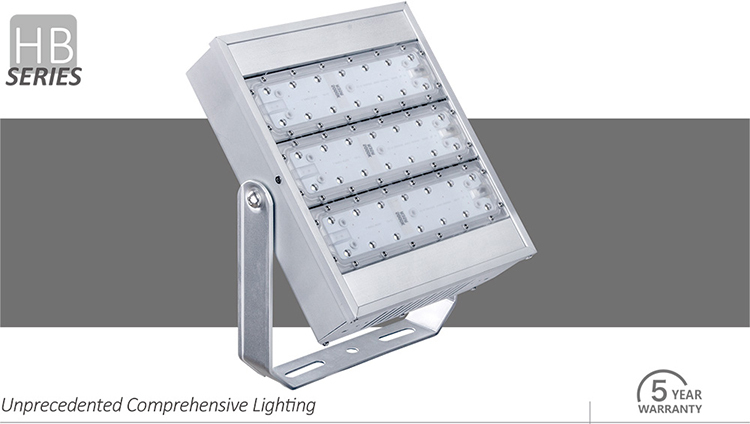

Equipped with exceptional ZGSM 3rd generation LED module, the HB-Series LED Floodlights give best luminous output, stability and extra long life. HB-Series LED Floodlights are intended to build the most cost-performance luminaires ever.

ZGSM completed the R&D independently, and reserve all related patents for HB-Series LED Floodlights.

Easy assemble/disassemble, neat wiring & connection, up to 100 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over then 100,000 hours operation life and 5 years warranty.

More information about ZGSM HB-Series LED Floodlights and LED lighting technologies at




Specification

Model ZGSM-FGD200HB
LED Brand LUXEON® TX
Driver Brand Meanwell HLG series
Norminal Wattage 200W
LED Module Quantity 5 modules
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Lamp Rated Luminous Efficiency >110lm/w
Lamp Rated Lumen output 22000 lm (Lumen tolerance +/- 5%)
Color Rendering Index Ra>70
Color Temperature 3000,4000 5000 or 5700K
Photometric Type 60,90,110 degrees
Optimal Operating Temperature 25℃
Storage Temperatures ‘-40℃~+70℃
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 100000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials Anodized Aluminum
IP Rating IP66 with test report
IK Rating IK10 with test report
Certification CE,ROHS,GS,CB,UL,DLC,SAA
Optional Function 1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty 5 years

Packing Details
Fixture Dimension 458 x270 x336 mm
Fixture Weight 6.3 kg /13.9 lbs
Packing Dimension 580x370 x200mm
Packing Weight 7.2kg /15.9 lbs







Company Overview








Contact us if you need more details on High Lumen Led Outdoor Flood Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Bay Reflector、Flood Light Outdoor. If these products fail to match your need, please contact us and we would like to provide relevant information.
