100-240v/277v 347v 480v input 60 90 110 Beam angle 200 watts UL DLC listed led flood lights
Basic Info
Product Description

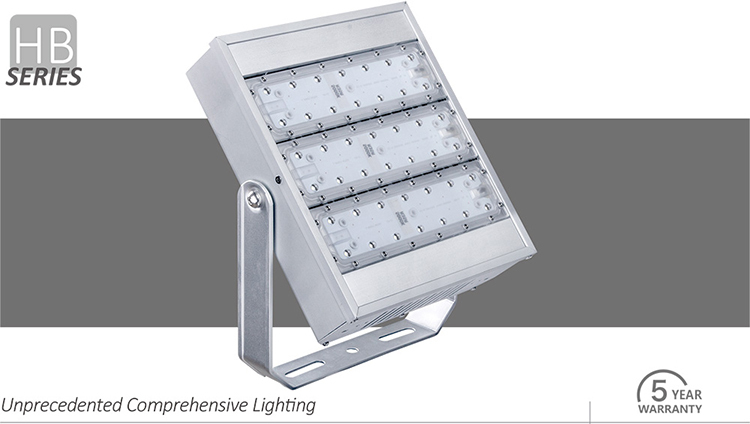

100-240v/277v 347v 480v input 60° 90° 110° Beam angle 200 watts UL DLC listed LED Flood Lights





Product Benefits

LED LUMINOUS SOURCE
The ZGSM HB-Series LED Floodlights are utilizing Lumileds Luxeon TX luminous source, providing excellent lumen output - up to 110 LPW, long-lasting stability and splendid sight.

Each LUXEON TX owns eletrostatic protection component, maximally avoid the damage of electrostatic.

More information about the LUXEON TX and solid-state lighting technologies can be found


LED DRIVER
Full Range of ZGSM HB-Series LED Floodlightsare utilizing MEANWELL HLG series high-end driver, optimal operation stability, lifespan and performance.

More information about the MEANWELL HLG and LED driver technologies, please visit


ZGSM 3RD GENERATION LED MODULE
Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.


XTREME LUMINAIRE DESIGN
Equipped with exceptional ZGSM 3rd generation LED module, the HB-Series LED Floodlights give best luminous output, stability and extra long life. HB-Series LED Floodlights are intended to build the most cost-performance luminaires ever.

ZGSM completed the R&D independently, and reserve all related patents for HB-Series LED Floodlights.

Easy assemble/disassemble, neat wiring & connection, up to 110 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over then 100,000 hours operation life and 5 years warranty.

More information about ZGSM HB-Series LED Floodlights and LED lighting technologies at







Specification


Specifications

Model

ZGSM-FGD200HB

LED Brand

Lumileds Luxeon TX

Driver Brand

Meanwell HLG series

Norminal Wattage

200W

LED Module Quantity

5 modules

Input Voltage

100-240/277VAC

Power Efficiency

>90%

Power Factor

>0.95

Lamp Rated Luminous Efficiency

>110lm/w

Lamp Rated Lumen output

22000 lm (Lumen tolerance +/- 5%)

Color Rendering Index

Ra>70

Color Temperature

4000 5000 or 5700K

Photometric Type

60,90,110 degrees

Optimal Operating Temperature

25

Storage Temperatures

‘-40~+70

Working Environment

Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion

< 10%

Lumen Maintenance

> 100000 hours -L70, @25 ºC (77 ºF)

Body and Shell Materials

Anodized Aluminum

IP Rating

IP66 with test report

IK Rating

IK10 with test report

Certification

CE,ROHS,GS,CB,UL,DLC.SAA

Optional Function

1-10V DC or PWM Signal or Resistance Dimming

Timer/Photocell Control

Warranty

7 years





Packing Details

Fixture Dimension

458 x270 x336 mm

Fixture Weight

6.3 kg /13.9 lbs

Packing Dimension

580x370 x200mm

Packing Weight

7.2kg /15.9 lbs
