subway station tunnel bridge workshop warehouse used gas station led canopy lights
Basic Info
Product Description

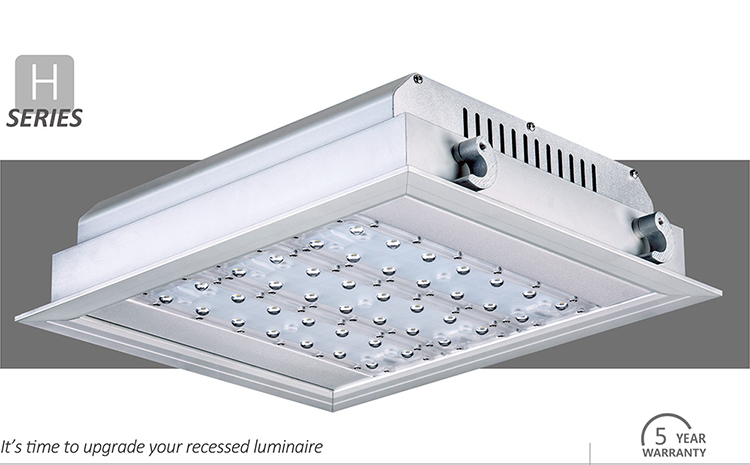

ZGSM LED Canopy Lights





Product Benefits

LED LUMINOUS SOURCE
The ZGSM H-Series LED Recessed Lights are utilizing  LUXEON TX LED luminous source, providing excellent lumen output - up to110LPW, long-lasting stability and splendid sight.

Each LUXEON TX owns eletrostatic protection component, maximally avoid the damage of electrostatic.

More information about the LUXEON TX and solid-state lighting technologies can be found at


LED DRIVER
Full Range of ZGSM H-Series LED Recessed Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.

More information about the MEANWELL HLG series and LED driver technologies, please visit


ZGSM 3RD GENERATION LED MODULE
Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.


XTREME LUMINAIRE DESIGN
Equipped with exceptional ZGSM 3rd generation LED module, the H-Series LED Recessed Lights give best luminous output, stability and extra long life. H-Series LED Recessed Lights are intended to build the most cost-performance luminaires ever.

ZGSM completed the R&D independently, and reserve all related patents for H-Series LED Recessed Lights.

Easy assemble/disassemble, neat wiring & connection, up to 110 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over then 100,000 hours operation life and 5 years warranty.

More information about ZGSM H-Series LED Recessed Lights and LED lighting technologies at






Specification


Specifications

Model

ZGSM-QD120H

LED Brand

 LUXEON® TX/LG

Driver Brand

Meanwell HLG series

Norminal Wattage

120W

LED Module Quantity

3 modules

Input Voltage

100-240/277VAC

Power Efficiency

>90%

Power Factor

>0.95

Lamp Rated Luminous Efficiency

>110lm/w

Lamp Rated Lumen output

13200 lm (Lumen tolerance +/- 5%)

Color Rendering Index

Ra>70

Color Temperature

4000 5000 or 5700K

Photometric Type

60,90,110 degrees

Optimal Operating Temperature

25

Storage Temperatures

‘-40~+70

Working Environment

Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion

< 10%

Lumen Maintenance

> 100000 hours -L70, @25 ºC (77 ºF)

Body and Shell Materials

Anodized Aluminum

IP Rating

IP66 with test report

IK Rating

IK10 with test report

Certification

CE,ROHS,GS,SAA

Optional Function

1-10V DC or PWM Signal or Resistance Dimming

Timer/Photocell Control

Warranty

7years

Ceiling Thickness

5 to 25 mm /0.2 to 1.0 inches

Hole Size

492 ×285 mm /19.4 ×11.2 inches





Packing Details

Fixture Dimension

377 x316 x120 mm

Fixture Weight

4.4 kg /9.7 lbs

Packing Dimension

425 x365 x200 mm

Packing Weight

5.2 kg /11.5 lbs




Application




Company Overview







Contact us if you need more details on Led Canopy Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Canopy Lights、Gas Station Canopy Lights. If these products fail to match your need, please contact us and we would like to provide relevant information.
