NEMA Socket Photocell 3500K-5700K IP66 230W energy saving lamp LED Street Light with UL certificate
Basic Info
Product Description

NEMA Socket Photocell 3500K-5700K IP66 230W energy saving lamp Led Street Light with UL certificate




Overview

An elegant new design with ZGSM 3rd-Generation module, more efficient  LUMILEDS® LUXEON TX  LED luminous source and high reliable MEAN WELL HLG Series LED driver make the ZGSM H Series the most cost-effective LED Street Light available today.

Product Benefits

LED LUMINOUS SOURCE
The new ZGSM H-series LED Street Lights are utilizing LUMILEDS® LUXEON TX  LED luminous source, providing excellent lumen output, long-lasting stability and splendid sight.

Each LUXEON® TX owns eletrostatic protection component, maximally avoid the damage of electrostatic.

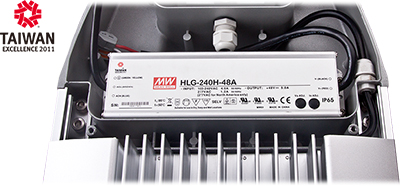

LED DRIVER
Full Range ZGSM H-series LED street lights Utilizing MEAN WELL® HLG series high-end driver, great luminaire stability, lifespan and optimal performance status.

More information about the MEAN WELL® HLG series and LED driver technologies, please visit

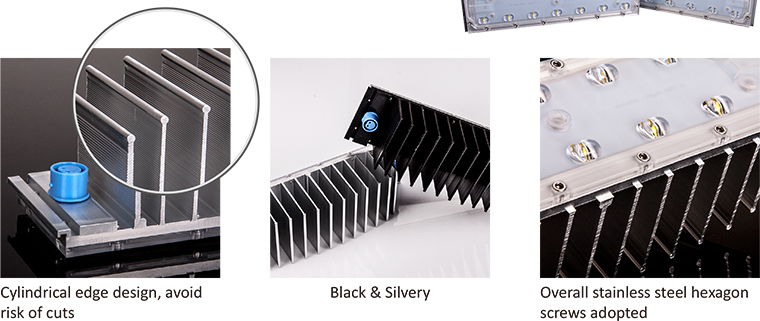

BRAND-NEW LED MODULE DESIGN

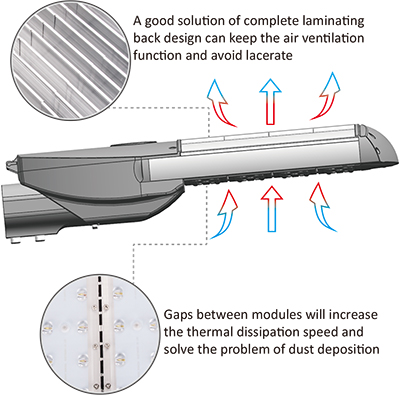

Exquisite design with powerful thermal output, with more reliable waterproof performance.

XTREME LUMINAIRE DESIGN
Equipped with exceptional ZGSM 3rd-generation LED module, the brand-new H series LED street light will give best luminous output, stability and super long life. And intend to build the most cost-effective LED street light ever.

ZGSM completed the R&D independently, and reserve all related patents for H-series LED street lights.

Easy assemble/disassemble, neat wiring & connection, up to 110LPW(lumen per watt) luminaire light output, IP66 Rated, 90%+ driver efficiency, 5 year warranty for whole luminaire.

More information about the ZGSM® H series LED street light and LED lighting technologies, please visit





FLEXIBLE INSTALLATION
Designed for horizontal and vertical applications and 0-15º adjustable by each step. Easily switch 180º of the pole mounting component for horizontal and vertical installation.

Detailed Features


Specification


Specifications
Model ZGSM-LD230H
LED Brand Luxeon TX
Driver Brand Meanwell HLG series
Norminal Wattage 230W
LED Module Quantity 7 modules
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Lamp Rated Luminous Efficiency >110lm/w
Lamp Rated Lumen output 25300 lm (Lumen tolerance +/- 5%)
Color Rendering Index Ra>70
Color Temperature 3000K or 4000K or 5000K or 5700K
Photometric Type Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature 25°
Storage Temperatures -40°C~50°C
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 100000 hours -L70, @25 ºC (77 ºF)
Wind Index Force 12
Body and Shell Materials Anodized Aluminum
IP Rating IP66 with test report
IK Rating IK10 with test report
Certification CE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Optional Function 1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty 7 years

Packing Details
Fixture Dimension 869 x316 x136 mm
Fixture Weight 10.8 kg /23.8 lbs
Packing Dimension 930 x370 x200 mm
Packing Weight 12.6 kg /27.8 lbs








Application


Company Overview



FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.

Contact us if you need more details on UL LED Street Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 230W LED Street Light、Energy Saving Lamp. If these products fail to match your need, please contact us and we would like to provide relevant information.
