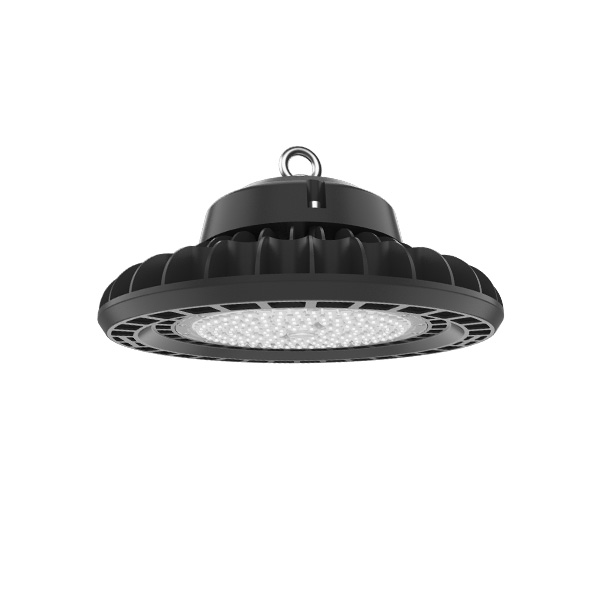

high lumen 200W lumileds 3030 chip LED high bay lamp fixture
Basic Info
Product Description

          similar product

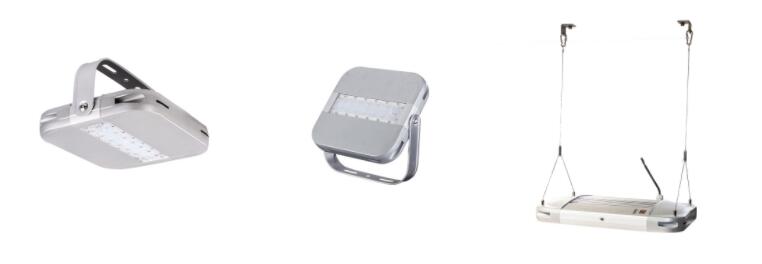

      ZGSM UFO SERIES              ZGSM HB SERIES



high lumen 200W lumileds 3030 chip Led High Bay lamp fixture



1.       Wide power range: 40W~480W

2.       Special circuit design, single LED’s damage won't affect others' normal work

3.       Modular design for easy installation, replacement and maintenance.

4.       High Lumen output up to 165lm/w with high quality LED chips

5.       Variety applications with different mounting Accessories

6.       Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

7.       Designed to last at least 100,000 hours at L70

8.       Multiple lighting distributions available

9.       UL/ DLC/ SAA/ CB/ CE/ RoHS/ IK10 /IP66 /LM79

10.    7 years limited warranty available.

  Overview



Product Benefits

LED LUMINOUS SOURCE
The ZGSM H-Series Led High Bay Lights are utilizing  LUXEON TX luminous source, providing excellent lumen output - up to 110 LPW, long-lasting stability and splendid sight.

Each LUXEON TX owns eletrostatic protection component, maximally avoid the damage of electrostatic.

More information about the LUXEON TX and solid-state lighting technologies can be found at


LED DRIVER
Full Range of ZGSM H-Series LED Street Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.

More information about the MEANWELL HLG and LED driver technologies, please visit

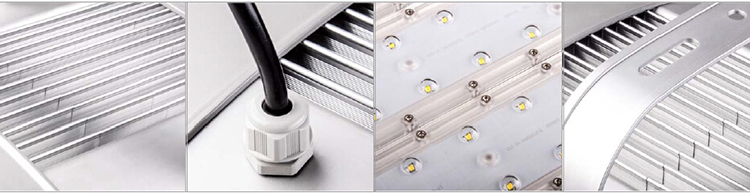

ZGSM 3RD GENERATION LED MODULE
Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.

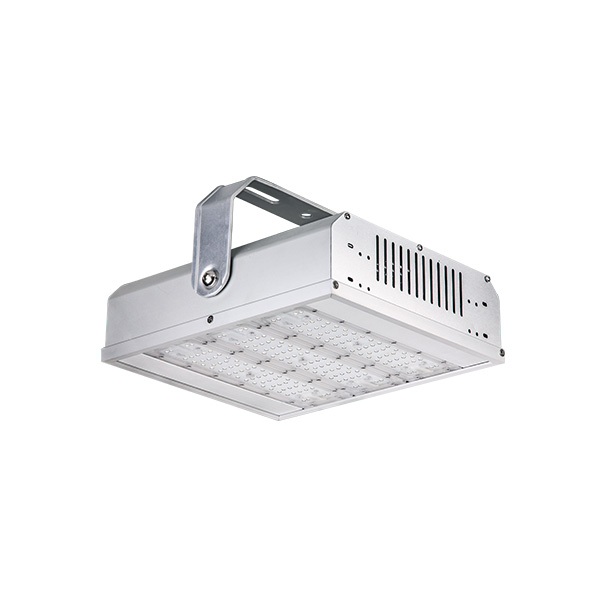

XTREME LUMINAIRE DESIGN
Equipped with exceptional ZGSM 3rd generation LED module, the H-Series LED High Bay Lights give best luminous output, stability and extra long life. H-Series LED High Bay Lights are intended to build the most cost-performance luminaires ever.

ZGSM completed the R&D independently, and reserve all related patents for H-Series LED High Bay Lights.

Easy assemble/disassemble, neat wiring & connection, up to 110 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over then 100,000 hours operation life and 5 years warranty.

More information about ZGSM H-Series LED High Bay Lights and LED lighting technologies at











Specification




Specifications
Model ZGSM-GCD200H5
LED Brand Philips Lumileds 3030
Driver Brand Meanwell HLG series
Norminal Wattage 200W
LED Module Quantity 4 modules
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Lamp Rated Luminous Efficiency >125 lm/w
Lamp Rated Lumen output 25,000 lm (Lumen tolerance +/- 5%)
Color Rendering Index Ra>70
Color Temperature 3000K, 4000K, 5000K or 5700K
Photometric Type 60,90,110 degrees
Optimal Operating Temperature 25℃
Storage Temperatures ‘-40℃~+70℃
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 75,000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials Anodized Aluminum
IP Rating IP66 with test report
IK Rating IK10 with test report
Certification CE, ROHS, IOS9001, ISO14001, LM80
Optional Function 1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty 7 years

Packing Details
Fixture Dimension 512 x340 x156 mm
Fixture Weight 6.0 kg /13.2 lbs
Packing Dimension 560 x365 x160 mm
Packing Weight 7.0 kg /15.4 lbs

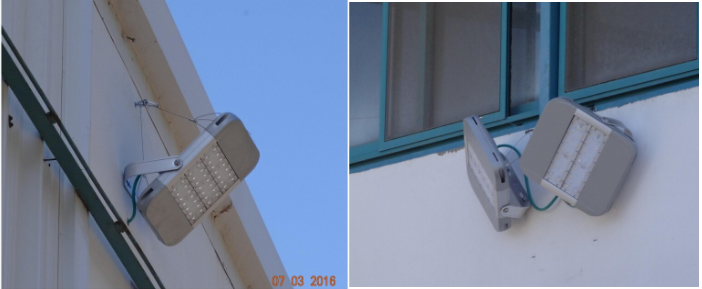

Application


Company Overview
1. More than 13 years experience in LED lights.
2. All products are patented.
3. All products are approved by TUV and UL
4. Have own R&D team. customized services are available.
5. ISO9001 and 14001 certified factory.








Contact us if you need more details on Led High Bay Lamp. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Led High Bay Light Fixture、Led Low Bay Fixtures. If these products fail to match your need, please contact us and we would like to provide relevant information.
