LED Street Light Price for Highway Parking Lot Lighting
Basic Info
Product Description

 Led Street Light Price for Highway Parking Lot Lighting


Overview

An elegant new design with ZGSM 3rd-Generation module, more efficient  LUMILEDS® LUXEON TX  LED luminous source and high reliable Inventronics LED driver make the ZGSM H2 series the most cost-effective LED Street Light available today.

Product Benefits

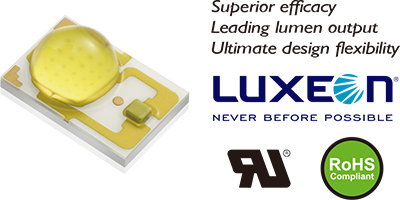

LED LUMINOUS SOURCE
The new ZGSM H2-series LED Street Lights are utilizing LUMILEDS® LUXEON TX  LED luminous source, providing excellent lumen output, long-lasting stability and splendid sight.

Each LUXEON® TX owns eletrostatic protection component, maximally avoid the damage of electrostatic.

More information about the LUXEON® TX and solid-state lighting technologies can be found at


LED DRIVER
Full Range ZGSM H2-series LED street lights Utilizing  Inventronics EBD Series LED driver, integrate dimming function and 6KV /10KV surge protection. Provide excellent performance performance and lifespan. and lifespan.

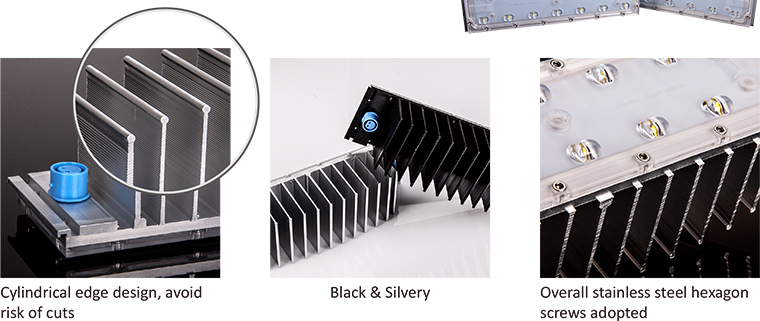

BRAND-NEW LED MODULE DESIGN

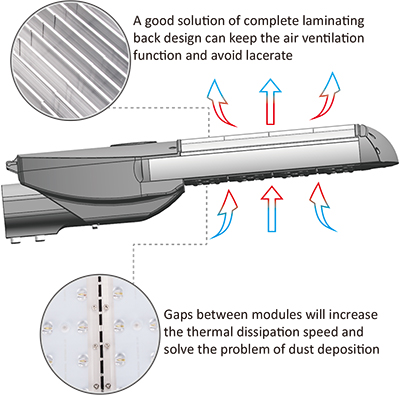

Exquisite design with powerful thermal output, with more reliable waterproof performance.

XTREME LUMINAIRE DESIGN
Equipped with exceptional ZGSM 3rd-generation LED module, the brand-new H2 series LED street light will give best luminous output, stability and super long life. And intend to build the most cost-effective LED street light ever.

ZGSM completed the R&D independently, and reserve all related patents for H2-series LED street lights.

Easy assemble/disassemble, neat wiring & connection, up to 110LPW(lumen per watt) luminaire light output, IP66 Rated, 90%+ driver efficiency, 5 year warranty for whole luminaire.

More information about the ZGSM® H2 series LED street light and LED lighting technologies, please visit


FLEXIBLE INSTALLATION
Designed for horizontal and vertical applications and 0-15º adjustable by each step. Easily switch 180º of the pole mounting component for horizontal and vertical installation.

Detailed Features


Specification

Specifications
Model ZGSM-LD240H2
LED Brand  LUMILEDS LUXEON® TX
Driver Brand Meanwell HLG series/ Inventronics
Norminal Wattage 240W
LED Module Quantity 6 modules
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Lamp Rated Luminous Efficiency >110lm/w
Lamp Rated Lumen output 26400 lm (Lumen tolerance +/- 5%)
Color Rendering Index Ra>70
Color Temperature 4000 or 5000 or 5700K
Photometric Type Type I Medium;Type II Medium;Type III Medium,TypeV Short
Optimal Operating Temperature 25℃
Storage Temperatures -40°C~50°C
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 100000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials Anodized Aluminum
IP Rating IP66 with test report
IK Rating IK10 with test report
Certification CE,ROHS,GS,CB,
Optional Function 1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty 5 years

Packing Details
Fixture Dimension 796 x316 x136 mm
Fixture Weight 9.9 kg /21.8 lbs
Packing Dimension 855x370 x200 mm
Packing Weight 11.6 kg /25.6 lbs




Application


Company Overview




Contact us if you need more details on LED Street Light Price. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Parking Lot Lighting、Highway Lighting. If these products fail to match your need, please contact us and we would like to provide relevant information.
