High Lumen Output LED Street Light with Mean Well Driver

Min. Order:	1 Piece/Pieces

Basic Info

Product Description

High Lumen output LED Street Light with Mean Well driver

27W	37W	56W	70W	90W	120W
56 mA	59 mA	70 mA	78 mA	86 mA	110 mA
LUMILEDS 3030 2D
72 pcs	96 pcs	120 pcs	144 pcs	168 pcs	168 pcs
Non-dimmable: MeanWell HLG Driver \| Dimmable: Inventronics Driver
3510 lm	4810 lm	7280 lm	9100 lm	11700 lm	15000 lm
130 lm /w					125 lm /w
100-240/277V AC 50/60Hz
1M, 2M, 3M, 5S
3000K, 4000K, 5000K, 5700K
10KV
ClassI, IP66, IK08
> 70
> 0.95
> 90%
>100,000 (L70)
Housing: Die-cast aluminum; Lens: PC and Tempered glass
-40 ºC ~ +50 ºC, 10%~90%RH
-40 ºC ~ +50 ºC
480480240mm; 8.2 / 8.4 / 8.5 / 8.8 / 9.8 / 9.8 kg to different power
495495170mm; 10.6 / 10.8 / 10.9 / 11.0 / 11.1 / 11.1 kg to different power

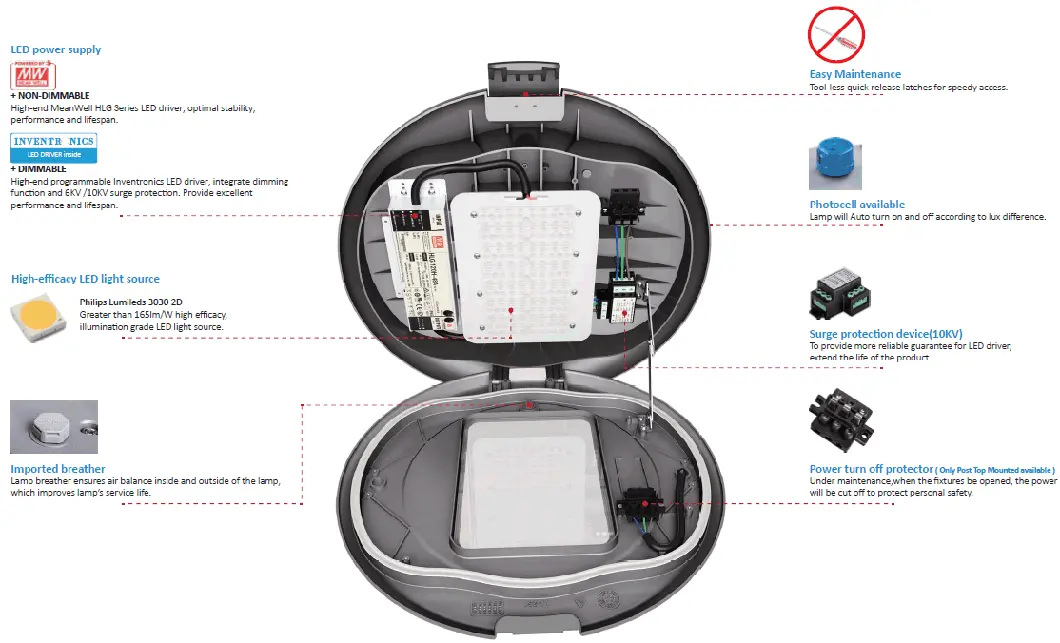

Major advantages of our L Series Street Light:
1. LUXEON 3030 luminous source with LM-80 report.
2. High Reliable MEANWELL HLG driver with 7 Years Warranty.
3. Over then 100,000 hours operation lifetime.

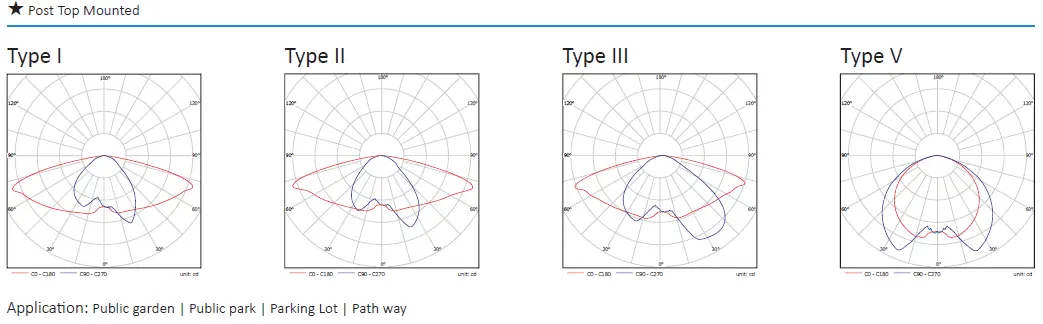

4. Have TypeI, TypeII and TypeIII, Type v four Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. multimounting mode
7. high lumen efficiency..
8. Modular design, die-casting aluminium housing
Wire Suspended Mounted LED Street Light LED Garden Light

Wire Suspended Mounted LED Street Light LED Garden Light

AFTER-SALE SERVICE-7 years warranty
Hangzhou ZGSM Technology Co., Ltd ("ZGSM") warrants this ZGSM-branded hardware product against defects in
materials and workmanship under normal use for a period of SEVEN (7) YEAR from the date of purchase.
•ZGSM provides free repair or replacement within warranty period.
•ZGSM shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
•Damage by thunder stroke over 6KV(L,N to FG) /4KV(L to N) will not covered by warranty based on IEC61000-4-5.

Contact us if you need more details on Led Street Light with Mean Well Driver. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Lumen Output LED Street Light、90W Post Top Parking Light. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : LED Street Light > L series
